Optimal parameters and placement of hybrid energy storage systems for frequency stability improvement

Tools

Liu, Dan and Yang, Qiufan and Chen, Yin and Chen, Xia and Wen, Jinyu (2025) Optimal parameters and placement of hybrid energy storage systems for frequency stability improvement. Protection and Control of Modern Power Systems, 10 (2). pp. 40-53. ISSN 2367-0983 (https://doi.org/10.23919/pcmp.2023.000259)

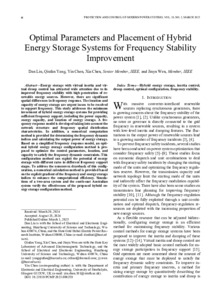

[thumbnail of Optimal_Parameters_and_Placement_of_Hybrid_Energy_Storage_Systems_for_Frequency_Stability_Improvement]
Preview
 Text. Filename: Optimal_Parameters_and_Placement_of_Hybrid_Energy_Storage_Systems_for_Frequency_Stability_Improvement.pdf
Final Published Version
Download (1MB)| Preview

Abstract

Energy storage with virtual inertia and virtual droop control has attracted wide attention due to its improved frequency stability with high penetration of renewable energy sources. However, there are significant spatial differences in frequency response. The location and capacity of energy storage are urgent issues to be resolved to support frequency. This study addresses the minimum investment of hybrid energy storage systems for providing sufficient frequency support, including the power capacity, energy capacity, and location of energy storage. A frequency response model is developed taking into account the network structure and frequency spatial distribution characteristics. In addition, a numerical computation method is provided for determining the frequency dynamic indices and calculating the output power of energy storage. Based on a simplified frequency response model, an optimal hybrid energy storage configuration method is proposed to optimize the control parameters, location, and capacity to satisfy the frequency dynamic constraints. This configuration method can exploit the potential of energy storage with different rates in different frequency support stages. To address the nonconvex drawback of this configuration, a numerical calculation method is provided based on the explicit gradient of the frequency and energy storage indices to enhance the computational efficiency. Simulations of a two-area system and the south-east Australian system verify the effectiveness of the proposed hybrid energy storage configuration method.

ORCID iDs

Liu, Dan, Yang, Qiufan, Chen, Yin ORCID logoORCID: https://orcid.org/0000-0002-3351-5065, Chen, Xia and Wen, Jinyu;
