Developing systems visualisations in design through a typology of visual tasks : a mechatronic case

Idrissov, Agzam and Rapp, Simon and Albers, Albert and Maier, Anja M (2021) Developing systems visualisations in design through a typology of visual tasks : a mechatronic case. Procedings of the Design Society, 1. pp. 1213-1222. ISSN 2732-527X (https://doi.org/10.1017/pds.2021.121)

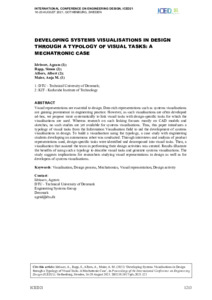

[thumbnail of Idrissov-etal-ICED-2021-developing-systems-visualisations-in-design-through-a-typology-of-visual-tasks-a-mechatronic-case]
Preview
 Text. Filename: Idrissov_etal_ICED_2021_developing_systems_visualisations_in_design_through_a_typology_of_visual_tasks_a_mechatronic_case.pdf
Final Published Version
License: Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 logo
Download (969kB)| Preview

Abstract

Visual representations are essential to design. Data-rich representations such as systems visualisations are gaining prominence in engineering practice. However, as such visualisations are often developed ad-hoc, we propose more systematically to link visual tasks with design-specific tasks for which the visualisations are used. Whereas research on such linking focuses mostly on CAD models and sketches, no such studies are yet available for systems visualisations. Thus, this paper introduces a typology of visual tasks from the Information Visualisation field to aid the development of systems visualisations in design. To build a visualisation using the typology, a case study with engineering students developing an autonomous robot was conducted. Through interviews and analysis of product representations used, design-specific tasks were identified and decomposed into visual tasks. Then, a visualisation that assisted the team in performing their design activities was created. Results illustrate the benefits of using such a typology to describe visual tasks and generate systems visualisations. The study suggests implications for researchers studying visual representations in design as well as for developers of systems visualisations.

ORCID iDs

Idrissov, Agzam, Rapp, Simon, Albers, Albert and Maier, Anja M ORCID logoORCID: https://orcid.org/0000-0002-3890-6452;
