An integrated dynamic design system for aerostatic spindle development

Chen, Wanqun and Liang, Yingchun and Luo, Xichun and Xie, Wenkun; Luo, Xichun and Cao, Yi and Tong, Zhen, eds. (2014) An integrated dynamic design system for aerostatic spindle development. In: ICAC 2014 - Proceedings of the 20th International Conference on Automation and Computing. ICAC 2014 - Proceedings of the 20th International Conference on Automation and Computing: Future Automation, Computing and Manufacturing . IEEE, GBR, pp. 96-99. ISBN 9781909522022 (https://doi.org/10.1109/IConAC.2014.6935468)

[thumbnail of Chen-etal-ICAS2014-An-integrated-dynamic-design-system-for-aerostatic-spindle-development]
Preview

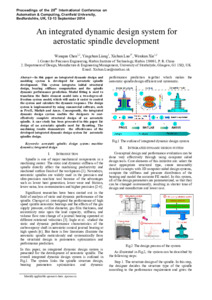

Text. Filename: Chen_etal_ICAS2014_An_integrated_dynamic_design_system_for_aerostatic_spindle_development.pdf
Accepted Author Manuscript

Download (871kB)| Preview

Abstract

In this paper an integrated dynamic design and modeling system is developed for aerostatic spindle development. This system integrates initial structural design, bearing stiffness computation and the spindle dynamic performance prediction. Modal fitting is used to transform the finite element model into a two-degree-of-freedom system model, which will make it easier to control the system and calculate the dynamic response. The design system is implemented by using commercial software, such as Pro/E, Matlab and Ansys. Consequently, the integrated dynamic design system enables the designers to cost-effectively complete structural design of an aerostatic spindle. A case study has been presented in this paper for design of an aerostatic spindle used for flycutting. The machining results demonstrate the effectiveness of the developed integrated dynamic design system for aerostatic spindles design.
